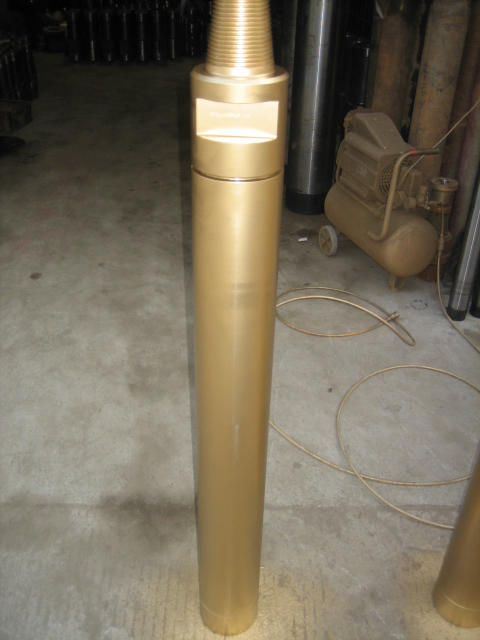

tem: TG3.5 DTH pneumatic hammer for dth drill rig
Specification:
1. Item name: TG4 hammer
2. Thread: API 2 3/8" REG PIN
3. Outer diameter: 99mm.
4. Working pressure: 14-24bar
5. Advantages: stable performance and high drilling rate
6. Service life: long
7. Weight: 45kg
Fetures:
1.Easy operation and maintenance
2. Easy disassemly.
3. Reliable quality, long service life.
4..Good flushing effect to ensure high drilling rate.
5.Strict quality warranty and compensation rules
6. Be certisfied by ISO9001:2008
Advanced material:
with high nickel steel, in features of high strength, heat resistance, and wearable.
Warranty:
The company responses for any quality problem caused by default of material.
Markets:
China, Chile, Brazil, Peru, Venezuela, Mexico, USA, Italy, France, Russia, Greece,Canada,Korea, South Africa, Nigeria, Korea, Israel, Malaysia, Mongolia and etc
Other details:
Price: FCA (China), FOB(China), CIF, CFR
Payment term: T/T
Technical Parameters:
| ITERM DESCRIPTION | PRODUCT NAME | DHD3.5 |
| NO | PART LIST | | PRODUCT CODE | 3HSK00 |
| 1 | TOP SUB | B1-SK10F-A4001-05 | BIT TYPE | D3.5 WITH FOOT VALVE |
| 2 | O RING | 145*5.3 | THREAD CONNECTION | API 2 3/8 REG |
| 3 | STEEL PAD RING | B1-SK10F-A4001-06 | WORKING PRESSURE (BAR) | 10.5-24 |
| 4 | BELLEVILLE SPRING | B1-SK10F-A4001-10 | | |
| 5 | CHECK VALVE | T2-081-03901 | AIR CONSUMPTION 24BAR (M3/MIN) | 12 |
| 6 | SPRING | T3-114-03001 | RECONMENDED ROTATION SPEED | 30-50 |
| 7 | AIR DISTRIBUTING SEAT | B1-SK10F-A4001-20 | OUTSIDE DIA (MM) | 82 |
| 8 | INNER CYLINDER | B1-SK10F-A4001-32 | LENGTH WITH OUT BITS | 807 |
| 9 | PISTON | B1-SK10F-A4001-42 | WEIGHT | 22 |
| 10 | OUTER CYLINDER | B1-SK10F-A4001-40 | NORMAL AXIAL PRESUURE (KN) | 5.1 |
| 11 | O RING | | REC HOLE SIZE(MM) | 90-110 |
| 12 | BUSH DRIVE SUB | B1-SK10F-A4001-45 | FLAT WENCH(MM) | 57 |
| 13 | CHUCK RING | B1-SK10F-A4001-50 | | |
| 14 | CHUCK SLEEVE PAD | B1-SK10F-A4001-55 | | |
| 15 | CHUCK SLEEVE | B1-SK10F-A4001-58 | | |
